IntelI3/I5/I7/I9 8/9th generationprocessors, Intel Xeon-E-2100/2200 processors

Supporthyper-threading technology, up to 16 threads when 8 cores;

Supportvirtualized device input/output

(VT-d)----Increasethe virtualization of device input/output on the basis of the previousvirtualized CPU, which can effectively improve the performance and efficiencyof the virtual machine;

Kernelacceleration mode 2 (Turbo Mode)

The kernelruns dynamically accelerated. The operation of the kernel can be turned on, offand accelerated as needed;

SupportIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2 instruction set;

Cachedesign----Three-level all-inclusive Cache design, L1 design is the same as Coremicro-architecture; L2 adopts ultra-low latency design, each core 256KB; L3adopts shared design, all cores on the chip shared.

IntegratedMemory Controller (IMC)----Moved from the chipset to the CPU chip, it supportsmulti-channel DDR4 memory. Compared with the previous generation, the memoryread delay is greatly reduced, and the memory bandwidth is greatly improved. upto three times.

Fast channel—DMI bus:

DMI is apoint-to-point connection technology that replaces the front-side bus (FSB);DMI adopts the serial mode as signal transmission, and adopts LVDS (low-voltagedifferential signaling technology, which is mainly used for high-speed digitalsignal interconnection, so that the signal can be transmitted in hundreds ofMbps or more) signaling technology; reliability, practicality and applicabilityguarantee the high availability of DMI; the bandwidth of 20-bit wide DMI canreach an astonishing 25.6GB per second per connection, which is far fromcomparable to FSB .

Virtualization Technology VT

Support virtualized device input/output(VT-d)----Increase the virtualization of device input/output on the basis ofthe previous virtualized CPU, which can effectively improve the performance andefficiency of virtual machines. It provides a strong guarantee for serverintegration, original data migration and security.

Configure on demand

According to the actual needs of users, provide the best configurationoptions.

High Availability

Withthe processor Hyper Threading technology, it supports multi-threading andmulti-tasking mode. The processor integrates a DDR4 memory controller,providing a highly selectable memory solution. Provide IRST (RAID 0/1/10/5)function to meet the system's requirements for hard disk security, and consideruser cost requirements. Integrated Intel server-class dual 1000M networkadapters, support link aggregation and binding redundancy functions, suitablefor a variety of application requirements.

Highsystem scalability

Supportquad-core/six-core/eight-core IntelI3/I5/I7/I9 8/9th generation processors,Intel Xeon-E-2100/2200 series processors, 4 DIMM memory slots can support up to128GB Unbuffered DDR4 ECC 2666MHz Memory, the standard system supports up to 6SATA hard disk expansion positions (4 hot-swappable + 2 built-in). Provide aPCI-E interface to provide users with expansion space.

safety

The motherboard provides TPM trusted moduleinterface, users can choose according to their needs, and support Intel SGX(Software Guard Extensions) technology

manage

IntegratedBMC module, support IPMI2.0, provide 1 RJ45 management network port, supportremote management, iKVM

Cost-effective solution

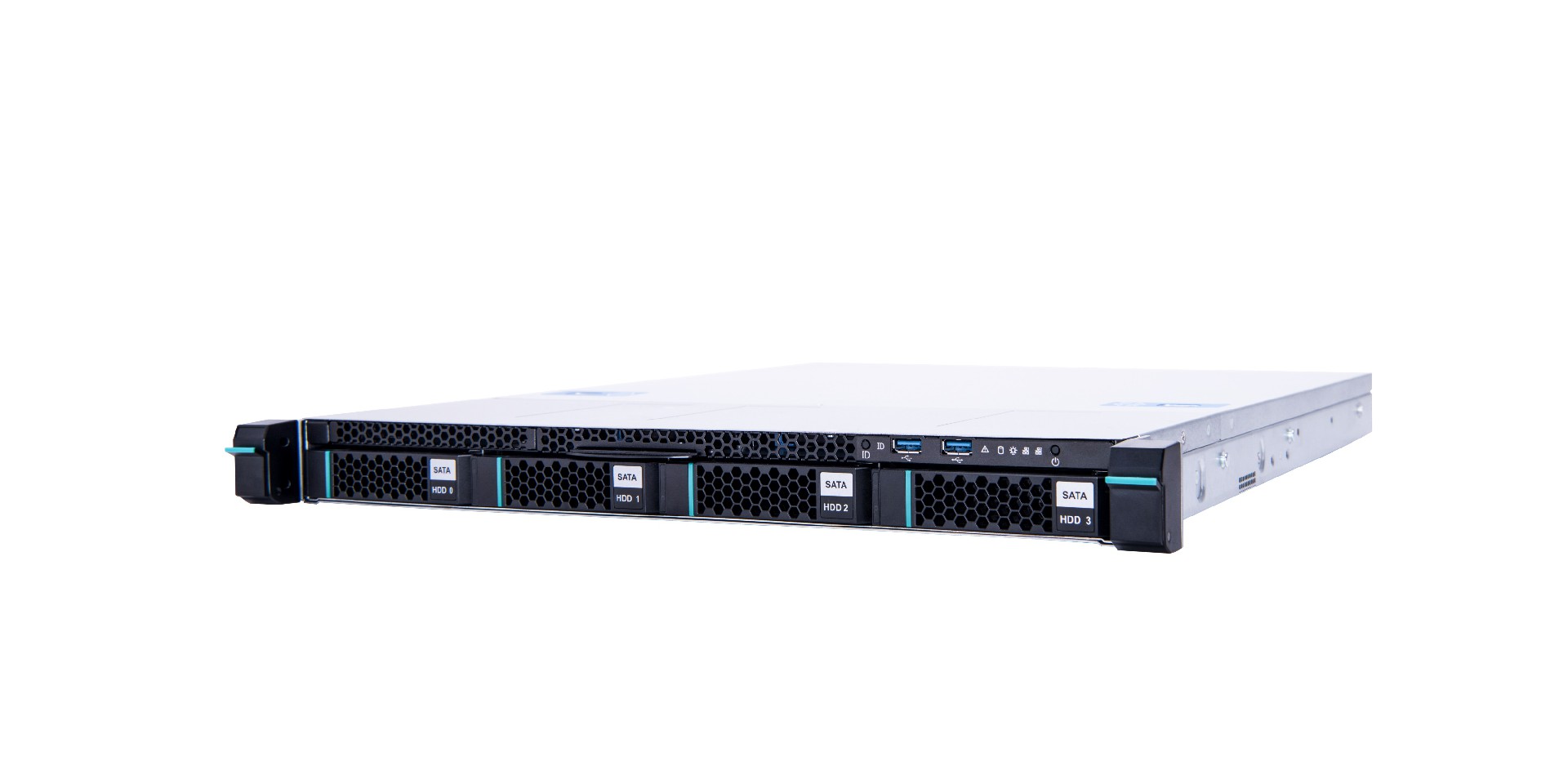

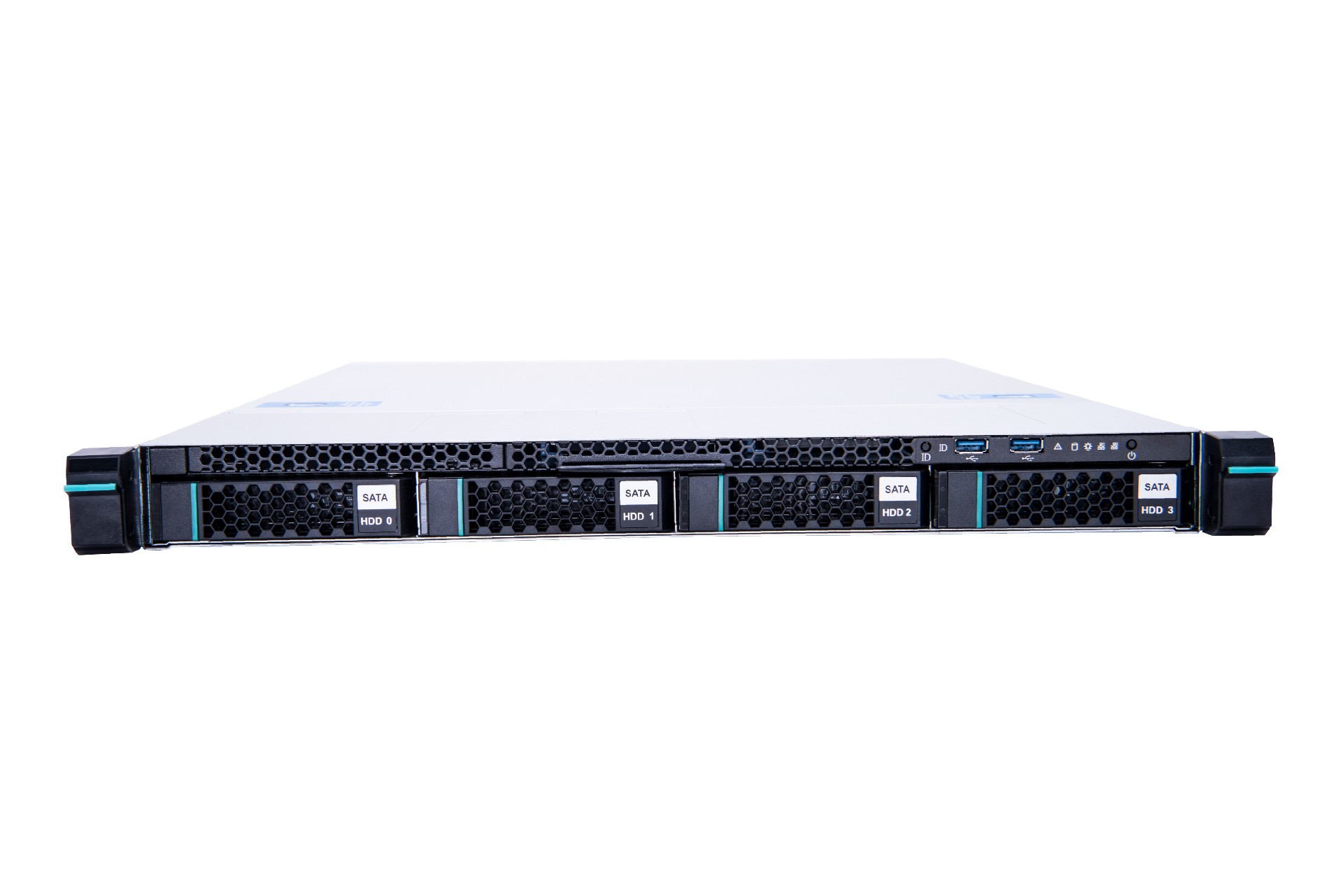

PR1285C4 adopts a server motherboardbased on Intel® C246 chipset, supports 1 LGA1151 IntelI3/I5/I7/I9 8/9generation processors, Intel Xeon-E-2100/2200 generation processors, themotherboard provides 4 memory slots, The maximum support is 128GB DDR4 2666MHzECC UDIMM; the motherboard naively supports 8 SATA3 (6Gbps) hard diskinterfaces. Integrated RAID controller, support low-cost RAID 0, 1, 10,high-reliability RAID5 (only windows OS) to improve data processing performanceand data protection functions. Integrated dual Gigabit Intel server network card is verysuitable for small and medium-sized enterprises. hosting platform.

Advanced chassis design process

It adopts short chassis design, which can be placed innetwork cabinets with a depth of 600mm and server cabinets with a standarddepth; intelligent cooling system can effectively reduce noise pollution andcreate a constant temperaturespace for
