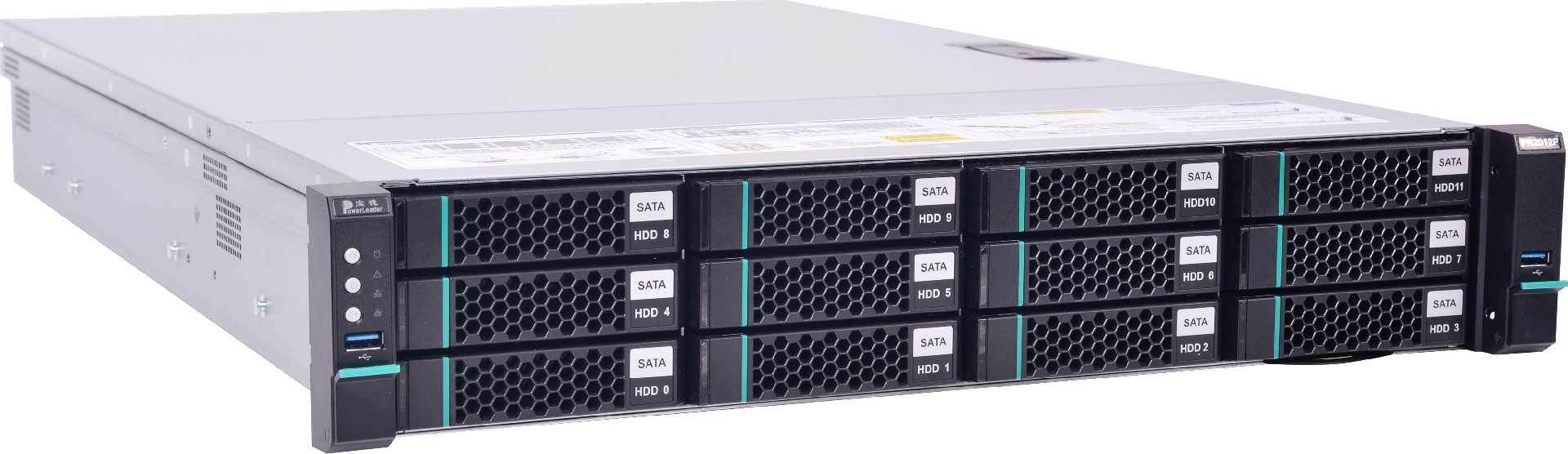

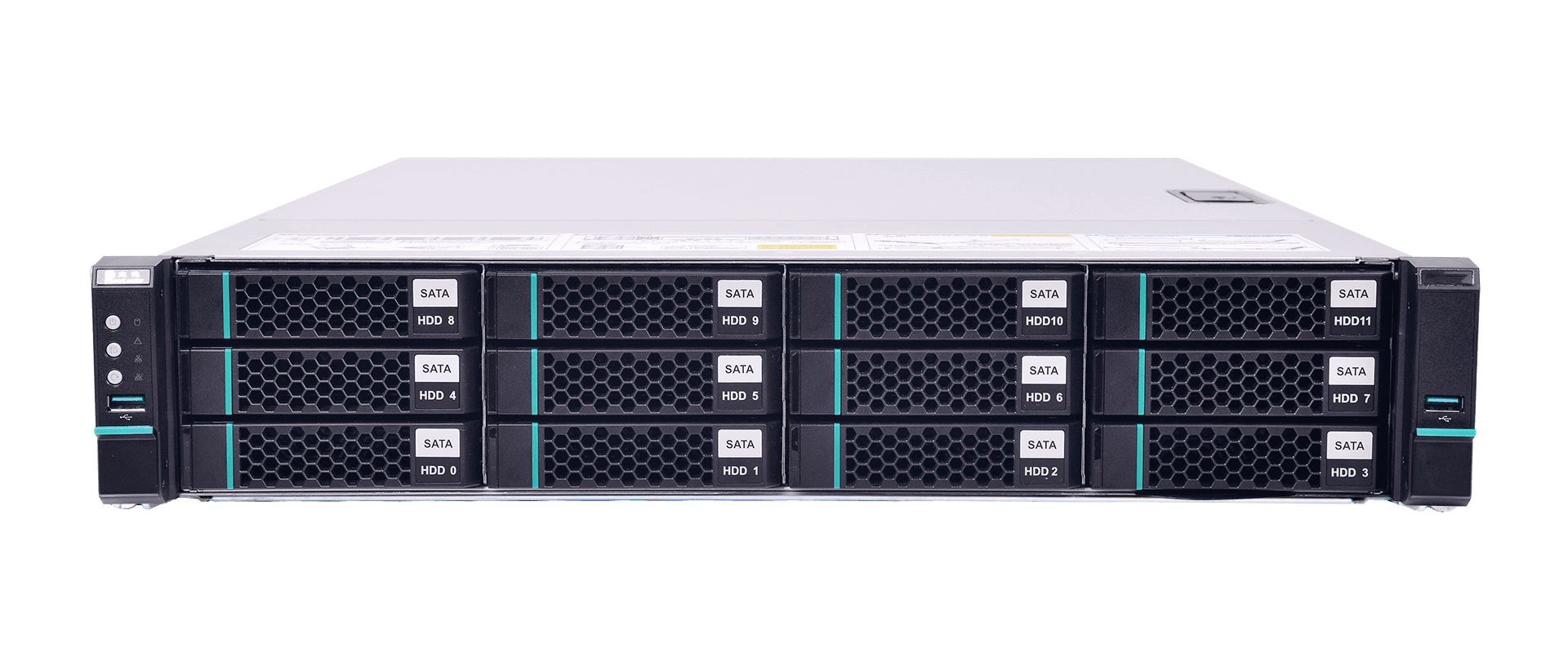

PowerLeader AMD 2 - Socket Server PR2008AL

PR2008AL is PowerLeader's latest AMD platform 2U dual-socket high-performance server product, providing 2 AMD SP3 processor slots, supporting AMD's latest Milan series processors, supporting up to 64 cores in a single processor core, which can provide unparalleled extreme experience and break a number of world-record computational performance, which can greatly enhance the computing power of the business platform, and can flexibly PCI-E, M.2 and other multi-purpose expansion.

Functional features Application environment Technical specifications Related downloads Related products

Functional features

High Performance

Supportsup to 2 AMD EPYC™7002/7003 series processors for powerful computing.

Maximum 16 memoryslots provide up to 8 memory channels for a single processor, supporting up toDDR4 3200MHz frequency..

Providesup to 6 PCIE 4.0 expansion slots, providing rich board expansion.

Optionalsupport for 2 NVMe U.2 SSDs to provide high performance IO expansion.

High Reliability

Optionalsupport for highly reliable RAID protection function, providing differentlevels of data redundancy protection.

SupportsIPMI 2.0 to facilitate monitoring and management of hardware status, and alsoprovides iKVM remote desktop management.

It adopts an intelligentcooling system to effectively control the operating temperature and improveenergy efficiency ratio. It adopts full shielding to prevent electromagneticradiation, anti-interference and anti-static.

Providesredundant 1+1 power supply, supports powerconsumption monitoring, module loss alarm and other functions, providing higher securityfor the safe operation of the server.

Technical specifications

Characteristic	PR2008ALTechnicalSpecifications
Format	2U rack server
Number of processors	Maximum 2 pieces
Processor specifications	AMD EPYC™ 7002/7003 series processors, supporting maximum TDP 280W
Memory	16 DDR4 memory slots , supports R DIMM/LRDIMM up to DDR4 3200MHz, and the maximum system capacity supports 4 TB *When only 1 CPU is installed , a maximum of 8 DIMM slots are supported
Storage	Prefix: Configuration 1: Supports up to 8 2.5/3.5-inch SATA/ SAS disks (directly connected to the backplane, SAS disks must be equipped with SAS cards or RAID cards ) Configuration 2 : Supports up to 12 2.5/3.5-inch SATA/ SAS disks (extension backplane, a SAS card or RAID card must be selected ) Post: Optional support for 2 2.5-inch disks ( SATA / SAS/ NVME ) built-in: Onboard support 1 PCIE 4.0 x 4 M.2 SSD (supports 2280/22110 )
RAID support	Optional supports RAID 0 , 1 , 10 , 5 , 50 , 6 , 60 levels, RAID no cache/1GB /2GB cache Optional cache power-down protection
Network	Standard configuration: 2 1Gb electrical ports (Broadcom BCM5720L ) 11Gb management port comes standard Optional expansion Gigabit and 10 Gigabit network cards
PCI-E extension	Provides 6 expansion slots: 3 PCI-E 4.0 x 16 half height half length 3 PCI-E 4.0 x 8 half height half length *When only 1 CPU is installed , some PCI-E slots are unavailable
Ports	USB3.0 interface: 2 (front) and 2 (rear) VGA interface: 1 (rear) COM serial port: 1 (rear)
Fans	4 8038 cooling fans
Power supply	Optional 800W /1200W redundant 1+ 1 power supply, 80Plus platinum level
IPMI Management	Support IPMI 2.0 , provide 1 RJ45 management network port externally, support iKVM remote management Onboard ASPEED AST2600 BMC
Display controller	Integrated ASPEED AST2600
CD-ROM/Floppy drive	Optional USB interface light
Operating systems	Windows Server 2016 and above Red Hat Enterprise Advanced Server 7.6 and above SuSE SLES 11 SP4and above Ubuntu 18.04and above CentOS 7.6and above
Powered by	220V AC/240V DC
Physical size	Width 438mmDepth 660mmHeight 87mm
environment and regulations
Temperature	10℃to 30℃during operation -40℃to +70℃when not operating surroundings
Relative humidity	95% non-operating , non-condensing at 25℃to 30℃
Noise	In operation mode, the sound pressure measured in the side position is <50dBA;the sound intensity measured when the ambient temperature is <28℃is 6.2BA
Safety Standards (China)	CCC

Service and Support

PowerLeader provides nationwide joint warranty, and PowerLeader 's professional after-sales service outlets across the country provide "one-stop" service response and support.

- 3-year limited on-site warranty and on-site support

- 4008-870-872 hotline response and support

For more information: please visit: http://en.powerleader.com.cn/

Correspondence address: 16th Floor, Building B, Building 7, Baoneng Technology Park, No. 1 Qingxiang Road, Longhua District, Shenzhen

PowerLeader reserves the right to change product specifications or other product information (including but not limited to product weight, appearance, size or other physical factors) without notice; the information mentioned in this article may change due to product upgrades or other reasons. resulting in changes without prior notice. The product pictures involved in this article are subject to the actual product.
