General computing, heterogeneous computing, collaborative computing, edge computing and other diversified product layout

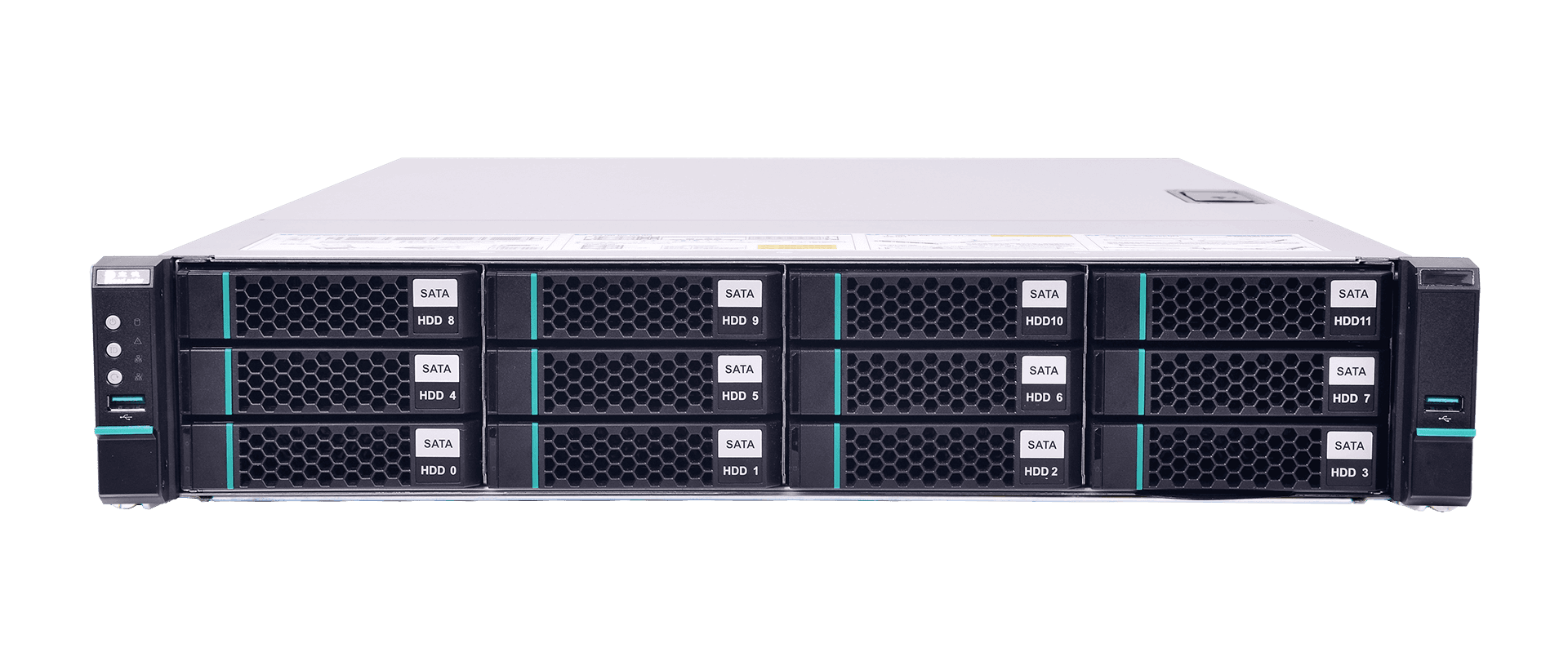

PR2012W is the latest 2U server product launched by Powerleader Company. It adopts Intel C620 series high-performance chipset and supports the third-generation Intel® Xeon® Scalable series processors. This model supports up to 2TB of memory capacity. By default, it supports 12 hot-swappable 3.5-inch hard drives, and can flexibly expand full-height and full-length PCI-E devices. The highly integrated design brings powerful performance in a limited space to support mission-critical operations. PR2012W provides advanced management functions and storage technology with reliable scalability and high availability.
PR2012W issuitable for cloud computing, virtualization application, big data analysis,online game, mail and information processing, web search.
Intelligent,large-scale virtualization and large-scale node technology computing.
Theoptimized rack and 2U form factor help users to quickly deploy and maintainlarge-scale cluster solutions.
PR2012W'sperformance is up to 40% higher than the previous generation, higher processorTDP, stronger hardware security capabilities, and better energy efficiency.
Byimproving security, eliminating I/O bottlenecks, optimizing density andperformance, providing reliable virtual resources, solving storage challengesbrought about by explosive data growth, and providing the most excellent andreliable solutions for private clouds, public clouds and hybrid clouds .
Support upto 2 3rd generation Intel® Xeon® Scalable series processors, which can providepowerful computing power and help users cope with heavier computing pressure.
SupportsIntel® Communication Acceleration Technology (Intel® QAT), Intel® AdvancedVector Extensions (Intel® AVX-512).
8 memorychannels, 16 memory DIMM slots, maximum support 2TB 3200MHz/DDR4, plus 2dedicated second-generation Optane memory slots.
Fullysupports M.2 and U.2, with faster transmission speed, lower power consumptionand higher reliability.
Itsupports 6 expansion slots by default, providing users with flexible connectionoptions.
Itintegrates 2 Gigabit data network ports by default, and can optionally add adual Gigabit data network port module, or a dual 10-Gigabit data network portmodule, which has the characteristics of load balancing, link aggregation andredundancy support. Effectively reduce network delay, one 1000M dedicatednetwork port for remote management.
Maximumsupport 12 3.5” and 2 2.5” hot-swappable SATA/SAS/SSD hard drives. (SelectingSAS hard disk requires optional SAS expansion kit)
Optionalsupport for high reliability RAID5, improve data processing performance anddata protection functions.
Theintelligent cooling system is adopted to effectively reduce noise pollution andcreate a constant temperature space for the cabinet; fully shielded to preventelectromagnetic radiation, anti-interference, and anti-static (EMI) design.
SupportIntel® Communication Acceleration Technology (Intel® QAT) to provide securehigh-performance and accelerated compression, enabling network, cloud servicesand storage functions to provide reliable protection for virtual and cloudenvironments.
Optionallysupports 1+1 full redundant power supply mode, supports PMBUS power consumptionmonitoring, module loss alarm and other functions, providing higher securityfor the operation of the server.
Supportfrequency reduction function, which can reduce system energy consumption at lowload.
The fanspeed is comprehensively adjusted according to the temperature of the thermalkey components, which saves energy while reducing noise and improving thereliability of the fan.
Supportenergy efficiency management and provide automatic server power consumptioncontrol, which helps to complete more tasks with less resources.
| Features | PR2012WTechnical Specification |
|---|---|
| Number of processors | 1/2 Piece |
| Processors | 3rd Generation Intel® Xeon® Scalable Family Processors, Ice Lake-SP |
| RAM | 16DIMM slots, support 3200MHz DDR4 RDIMM memory, up to 2TB, plus 2 dedicated second-generation Optane memory slots |
| Disk drives | Prefix: Supports 12 2.5/3.5-inch SAS/SATA/SSD hard drives Built-in or post: Supports two 2.5-inch SAS/SATA/SSD hard drives, or two 2.5-inch U.2 SSD hard drives Built-in support for 2 PCI-E M.2 2280/22110 SSDs and 1 Micro-SD |
| RAIDSupport | support raid 0,1 Optional support for SAS RAID0, 1, 10, 5, 50, 6, 60, etc., RAID no cache/1GB/2GB cache, Optional cache power-down protection |
| Network Interface | Integrated 2 Intel i350 Gigabit GE network ports；Optional external Gigabit and 10 Gigabit network cards |
| PCIEexpansion | Provides 6 half-height PCI-E expansion slots (2*PCI-E4.0x8, 4*PCI-E 4.0x16, supports 4 NVDIA T4 GPU accelerator cards) PCI-E slot 1 (from CPU0): 1*half-height PCI-E4.0x8 slot (default); PCI-E slot 2 (from CPU0): 1*half-height PCI-E4.0x16 slot (default); PCI-E slot 3 (from CPU0):; 1*half-height PCI-E4.0x16 slot (default); PCI-E slot 4 (from CPU1): 1*half-height PCI-E4.0x16 slot (default); PCI-E slot 5 (from CPU1): 1*half-height PCI-E4.0x16 slot (default); PCI-E slot 6 (from CPU1): 1*half-height PCI-E4.0x8 slot (default); |
| Others Ports | USB3.0 interface: 5 (2 in the front, 2 in the rear, 1 in the interior) VGA interface: 2 (1 at the front, 1 at the rear) Serial interface: 1 (1 RJ45 at the rear) Management network port: 1 (1 at the rear) |
| Fans | 4 hot-swappable redundant fans |
| Power supply | Support 800W/1200W Platinum AC power module optional; support 1+0 single power supply mode, or 1+1 redundant power supply mode; or 800W redundant DC-48V power supply module |
| Management | Support IPMI2.0, provide 1 100/1000 Mbps RJ45 management network port, support iKVM remote management |
| Display Controller | Integrated ASPEED AST2600 |
| CD-ROM/Drive | Optional SATA/USB interface optical drive |
| Supported operating systems | Microsoft Windows Server Red Hat Enterprise Linux Server CentOS Linux Server SUSE Linux Enterprise Server Ubuntu |
| Power supplies | 220V AC /240V DC/-48V DC |
| Dimensions | Height 87mm*width 438mm*depth 660mm, support 19" cabinet, minimum configuration gross weight is about 17KG |
| Environmental specifications | |
| Ambient Temperature: | Operating 10°C to 35°C Non-operating -40°C to +55°C ambient |
| Relative humidity | Non-operating 95% non-condensing at 25°C to 30°C |
| Acoustics | In operation mode, the sound pressure measured in the lateral position is <50dBA; the sound intensity measured when the ambient temperature is <28°C is 6.2BA |
| Static electricity | 15KV per Intel ambient temperature test specification |
| Safety Standard(China) | CCC |
