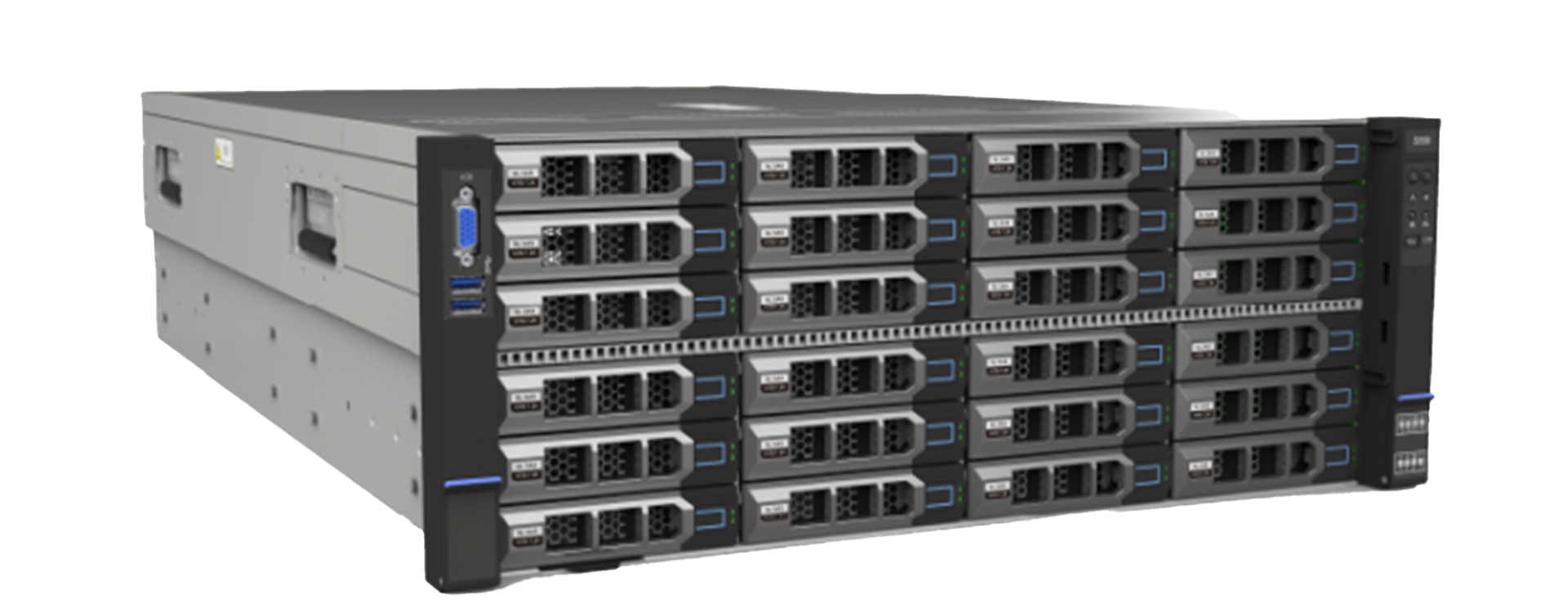

The PR4036W2 is the latest 4U server product on Intel Whitley platform. It adopts Intel C621A high-performance chipset and supports Intel's latest generation of Whitley Ice Lake scalable series processors, the model supports up to 32 memory slots, the front end supports 24 pieces of 3.5” hot-swappable HDDs, and the rear end supports up to 16 pieces of 3.5” hot-swappable HDDs and 2 pieces 2.5” hot-swappable HDDs, and optional support for 4 pieces 2.5” hot-swappable HDDs, as well as the flexible expansion of PCI-E devices. Highly integrated and modular design brings high reliability and easy maintenance.PR4036W2 provides advanced management features and storage technology with reliable scalability and high availability.
Supportsup to 2 Intel®Scalable processors with processor interconnect busUPI of 11.2GT/s and up to 40 computing cores per CPU.
SupportsIntel Turbo Boost acceleration technology, Hyper-threading technology andAdvanced Vector Extended Instruction Set (AVX2.0), which significantly improvesthe computing performance of compute-intensive applications.
32memory DIMM slots with maximum support for 3200Mhz DDR4 (Optional support forAEP memory), fully meeting the needs of high-capacity memory applicationscenarios.
Fullysupports SATA 3.0 and SAS 12Gb: faster transfer speed, lower power consumptionand higher reliability.
Supportsup to 10 * PCI-E 4.0 standard slots, onboard 1 * M.2 SSD slot;
Onboard1 * 1000M remote management dedicated network port.
OptionalSmart Array support for significantly enhanced I/O performance and optionalRAID 5 data protection.
Supports up to 44 * 3.5‘SATA/SAS/SSD drives + 2 * 2.5’ SATA/SAS/SSD drives.
Supports up to 36 * 3.5‘SATA/SAS/SSD hot-swappable drives + 4 * 2.5’ Nvme SSD hot-swappable drives + 2 *2.5‘ SATA/SAS/SSD hot-swappable drives + 4 * 3.5’ or 2.5 ‘ SATA/SAS internalhard drives.
Optionalsupport for SATA/SAS RAID5 to improve data processing performance and protectdata functions.
Adoptingintelligent cooling system to effectively reduce noise pollution and create aconstant temperature space in the case; fully shielded against electromagneticradiation, anti-interference and anti-static (EMI) design.
Supportfor Intel® Trusted Execution Technology (Intel® TXT) provides reliableprotection for virtual and cloud environments.
Intel®Advanced Encryption Standard New Instruction (Intel® AES-NI) accelerates andenhances encryption for faster, stronger enterprise-wide data protection.
Fullyredundant 1+1 power supply with 95% conversion efficiency, ultra-quiet powersupply and PMbus support.
Supportsintelligent frequency adjustment function, which can reduce system energyconsumption at low load.
Comprehensivefan speed adjustment based on thermally critical device temperatures savesenergy while reducing noise and improving fan reliability.
| Characteristic | PR24036W2 Technical Specifications |
|---|---|
| Form | 4U rack server |
| Number of processors | 1/2 piece |
| Processor | Supports 3rd Generation Intel® Xeon® Scalable Processors (Ice Lake) (8300/6300/5300/4300 series) up to 270W (configuration limitations apply) |
| Memory | 32DIMM slots, supports 2666/2933/3200MHz DDR4 RDIMM memory, up to 12TB Optional support for Intel Optane DIMMs |

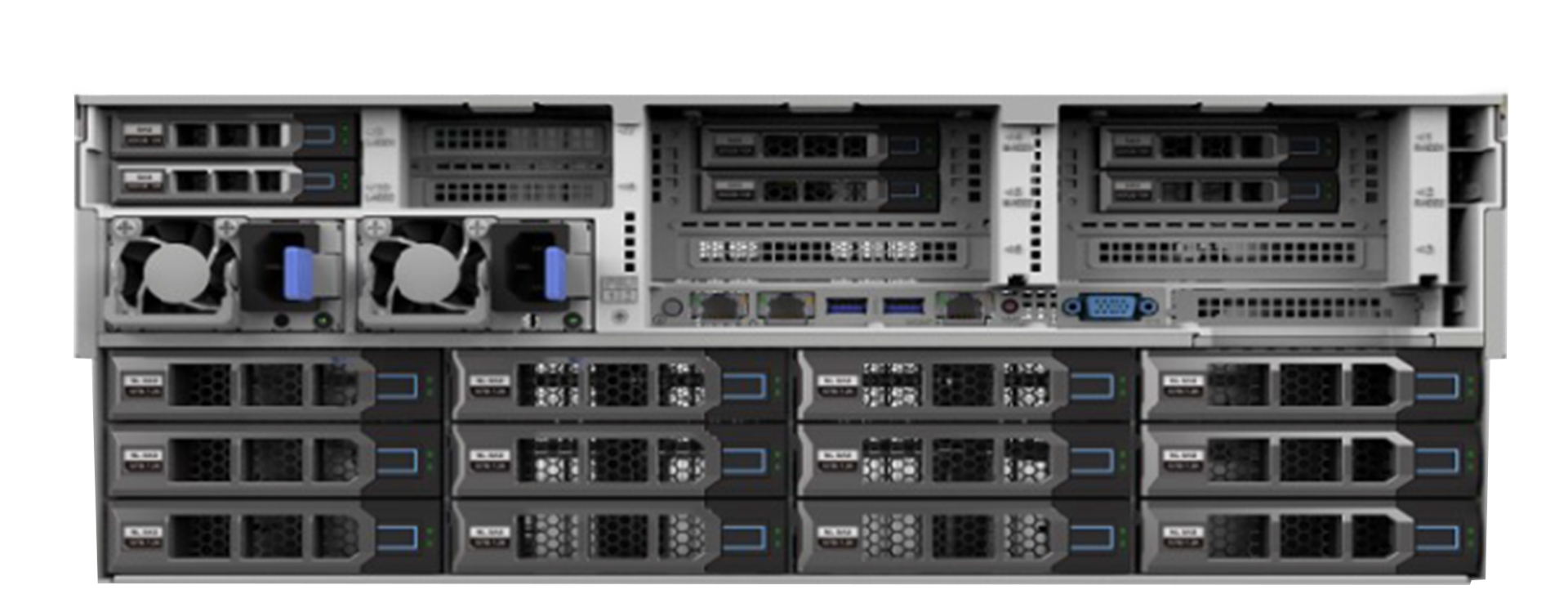

| Storage | Supports up to 44 * 3.5‘ SATA/SAS/SSD + 2 * 2.5’ SATA/SAS/SSD Supports up to 36 * 3.5‘ SATA/SAS/SSD hot-swappable drives + 4 * 2.5’ Nvme SSD hot-swappable drives + 2 * 2.5‘ SATA/SAS/SSD hot-swappable drives + 4 * 3.5’ or 2.5 ‘ SATA/SAS internal hard drives. Front: 24 * 3.5’ SAS/SATA hard drives. Internal: 4 * 3.5‘ SAS/SATA hard drives (2.5’ compatible) Rear: a. Supports up to 16 * 3.5’ SAS/SATA drives + 2 * 2.5’ SAS/SATA drives. b. Supports up to 12 * 3.5’ SAS/SATA + 4 * 2.5’ NVMe SSD + 2 * 2.5’ SAS/SATA |
| RAID | OnBoard support for soft SATA RAID0, 1, 10, 5. Optional support for SAS RAID0, 1, 10, 5, 50, 6, 60, etc., RAID 1GB/2GB Cache. Optional Cache super capacitor protection. |
| Network | No on-board integrated Gigabit Ethernet port; with 1 OCP3.0 NIC expansion port, optional external Gigabit and 10Gigabit Ethernet card |
| PCI-E Extension | Supports up to 6 * PCI-E expansion slots: 2 * PCI-E 4.0 x16 (full height cards) 4 * PCI-E 4.0 x8 (2*Full Height + 2*Low Profile) Supports up to 10 PCI-E 4.0 standard slots On-board 2 * M.2 NVME 2280/22110 SSDs |
| Interfaces | USB3.0 ports: 4 (2 Rear, 2 Front) VGA interface: 2 (1 Rear, 1 Front) Management network port: 1 (1 Rear) |
| Fan | 8 * 8038 fans |
| Power | Standard 1300W Platinum Server 1+1 redundant power supply (supports 240V HV DC) with PMbus support; Optional -48V 1+1 redundant DC power supply, supporting PMbus |
| Management | IPMI2.0, provide one 1000 Mbps RJ45 management network port externally, integrated iKVM, support remote management |
| Display Controller | Integrated ASPEED AST2500 |
| CD-ROM/Floopy Drive | Optional USB interface optical drive, floppy drive emulation USB stick |
| OS | Microsoft Windows Server、Microsoft Hyper-V Server、Red Hat Enterprise Linux、SUSE Linux Enterprise Server、CentOS、Ubuntu |
| Power Supply | 100-127Vac/50-60Hz 200-240Vac/50-60Hz 230-240Vdc Selectable 220v AC/240v DC/336v DC/-48v DC inputs |
| Physical Size | H175mm * W448mm * D778mm, support 19" cabinet Minimum configuration gross weight about 62KG |
| Environment and Regulations | |
| Ambient Temperature | 5°C to 35°C (operational) -40°C to +65°C (non-operational) |
| Relative Humidity | non-operating 95%, non-condensing at 25°C to 30°C |
| Safety Standards (China) | CCC |
